Overview

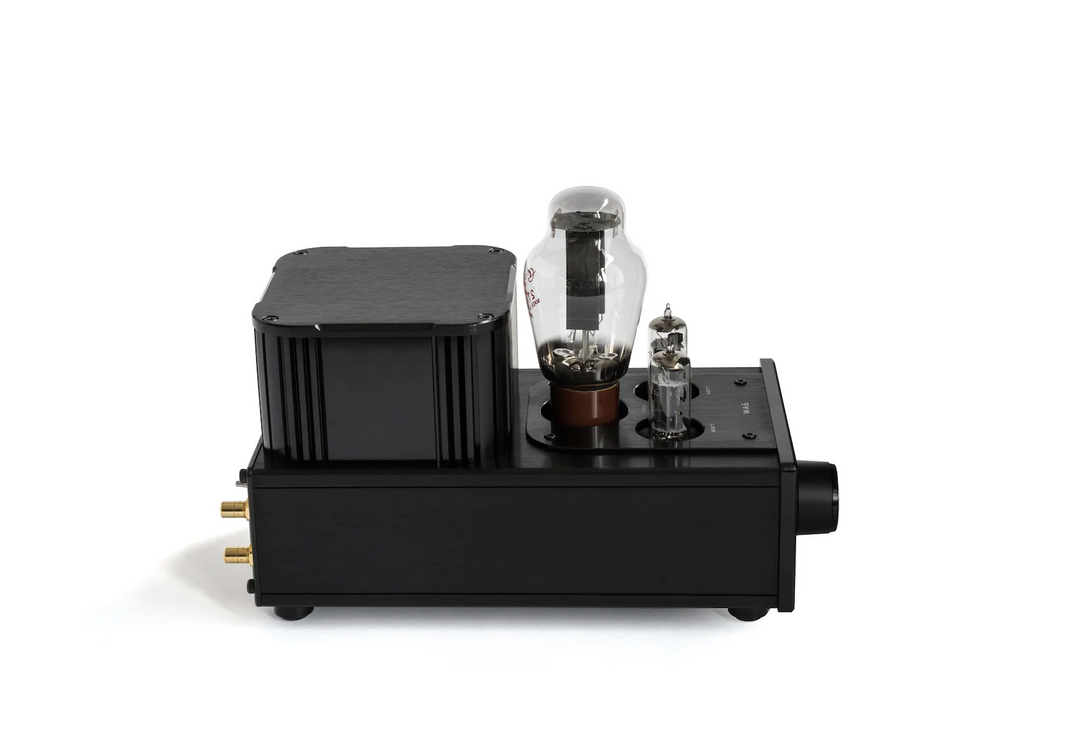

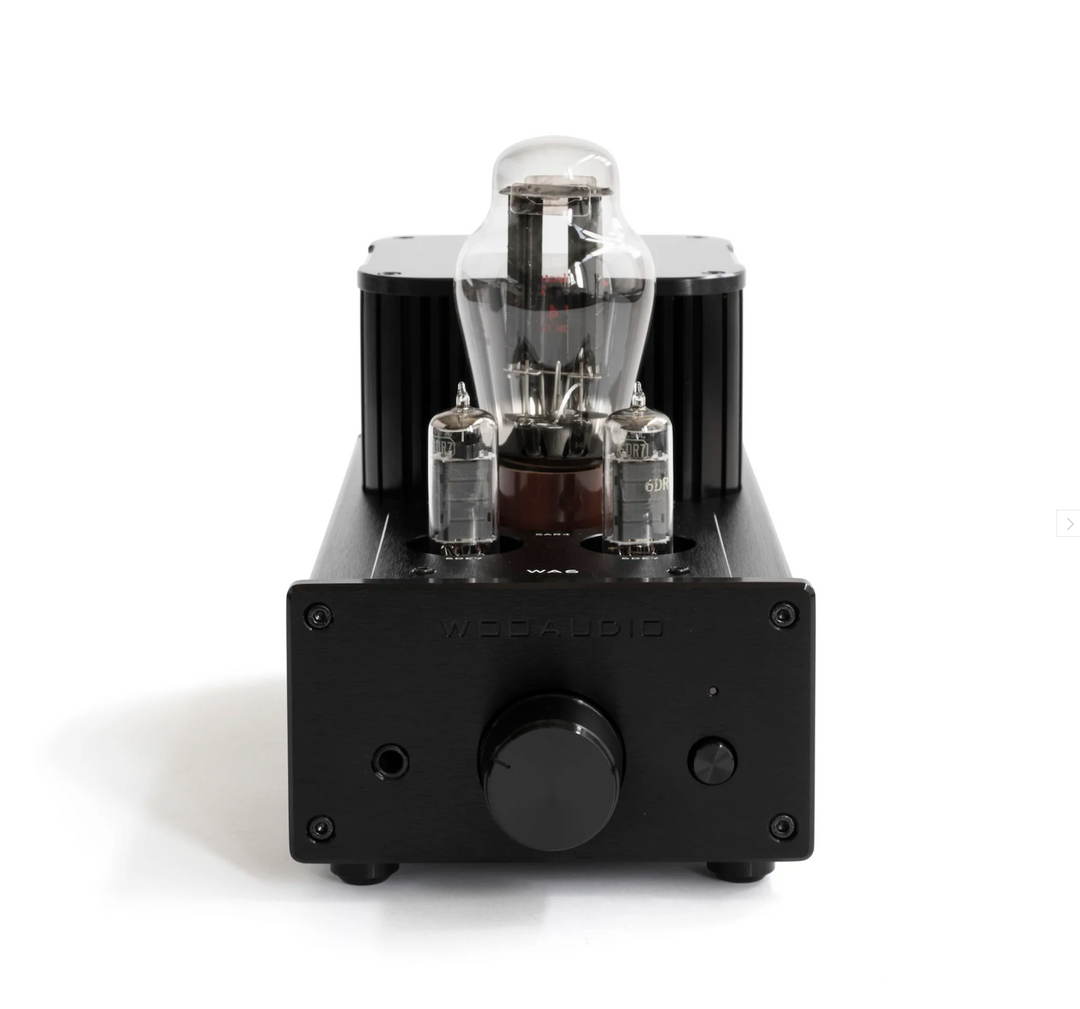

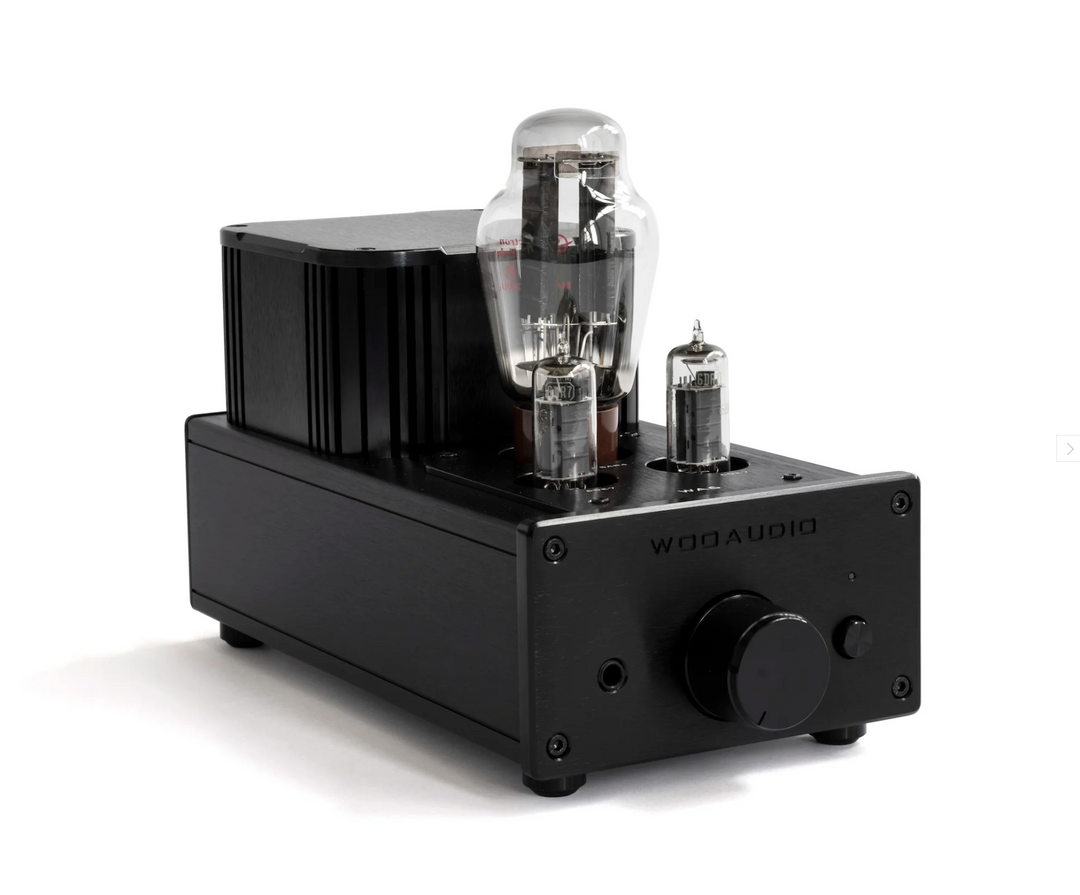

Handcrafted since 2008, WA6 (2nd gen) has set the standard for headphone amplifiers in its class. It can drive full-size headphones and in-ear monitors ranging from 8–600 Ohms with ease. WA6 (2nd gen) is an all-tube design, Class-A, transformer-coupled, single-ended triode (SET) amplifier. Under the hood of the all aluminum chassis is the same clean point-to-point wiring and premium quality parts found in our top tier models. WA6 (2nd gen) is an exceptional headphone amplifier for every music lover.

Highlights

• Updated to 2nd generation in April 2017

• 2nd gen is a minor update to driver/power tubes from 6v to 13v

• Tubes: 13DE7 driver/power x 2, 5U4G rectifier x 1

• Soket tabung Polytetrafluoroethylene (PTFE)

• Singled-ended Triode, Class-A

• Kabel yang digabungkan dengan transformator, kabel Point-to-Point

• Pseudo-dual power supply

• RCA input x 1

• HI / LO headphone impedance switch

• Output headphone stereo 1/4" (6.3mm) (8–600 Ohm)

• ALPS potentiometer and power switch

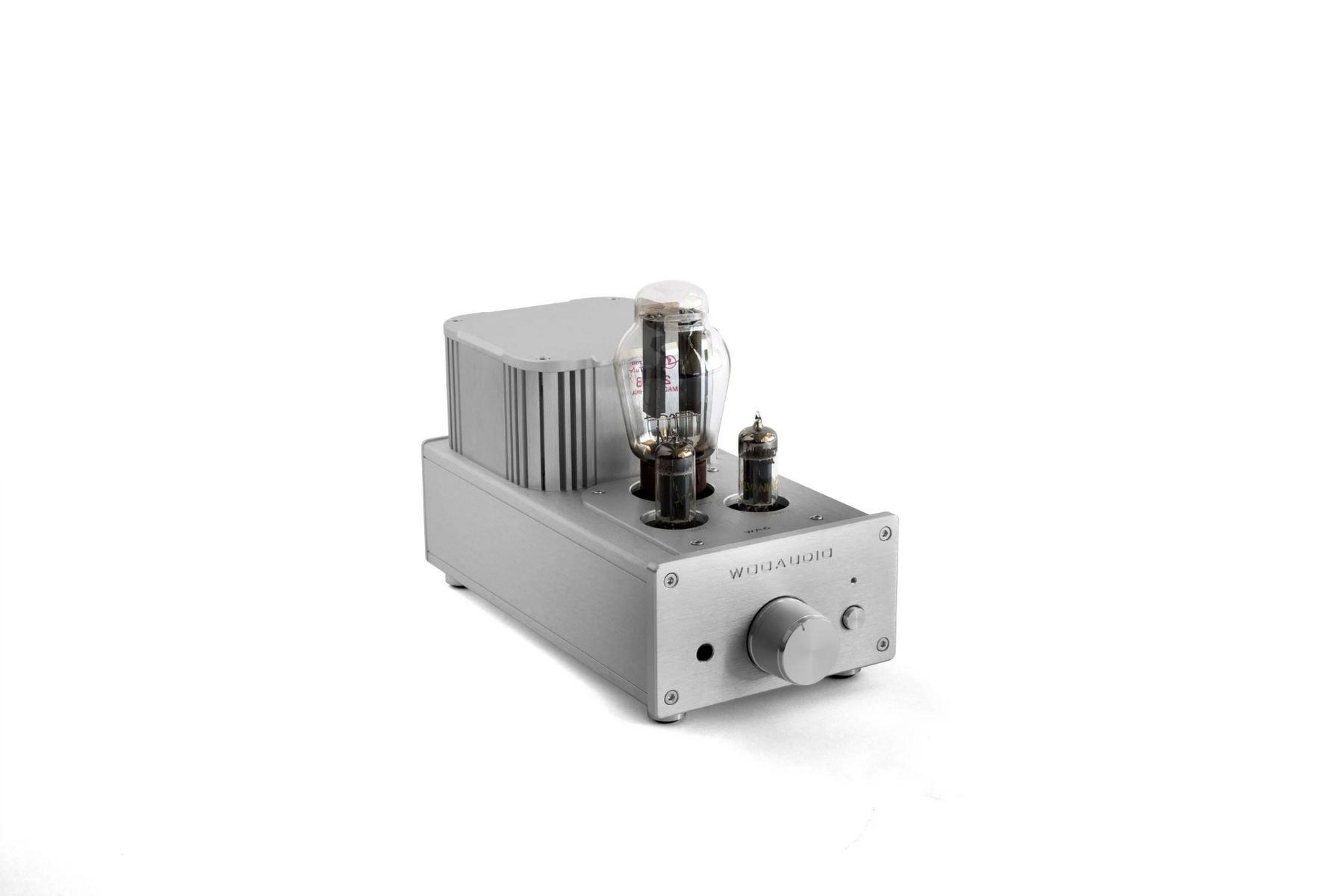

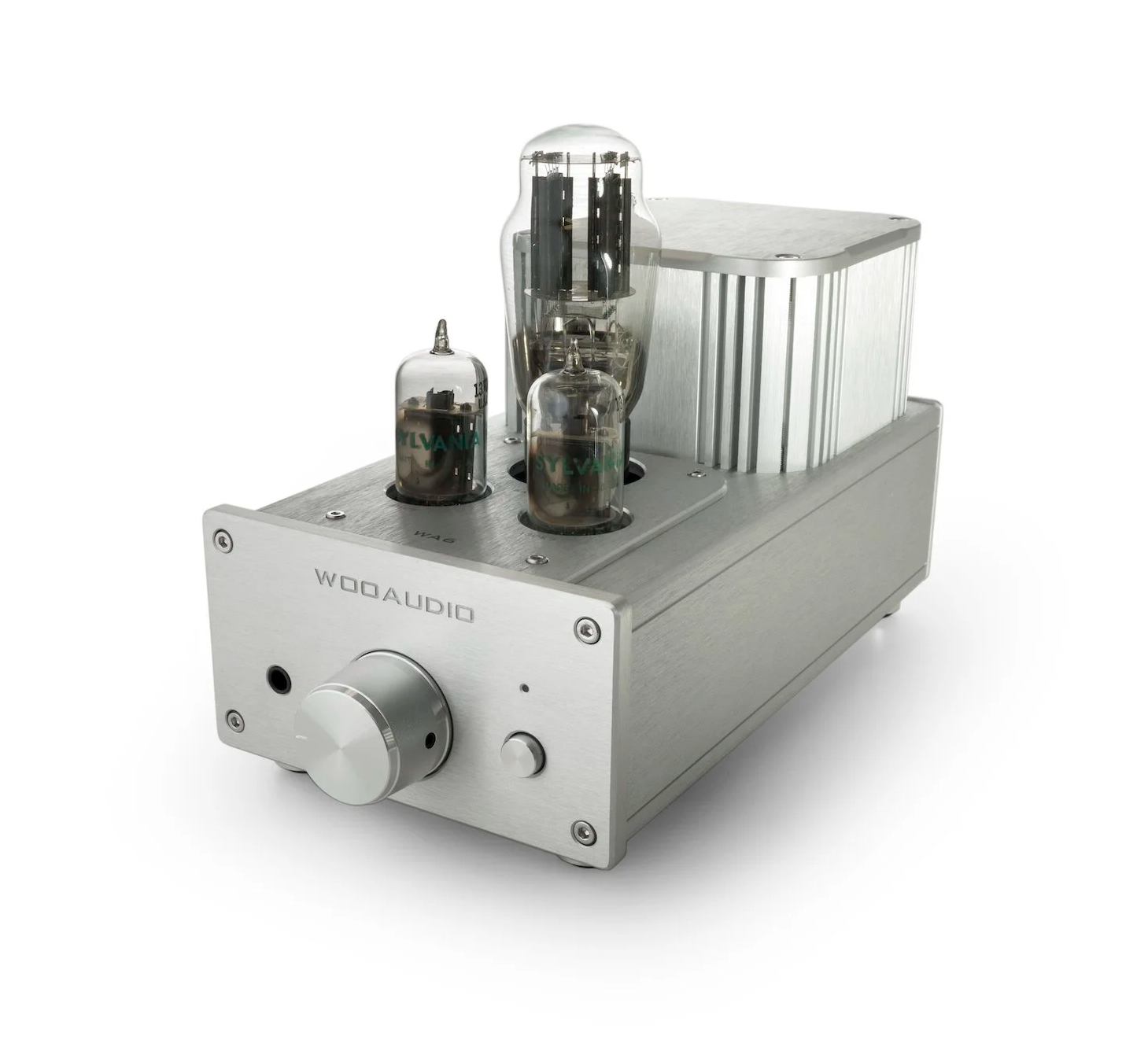

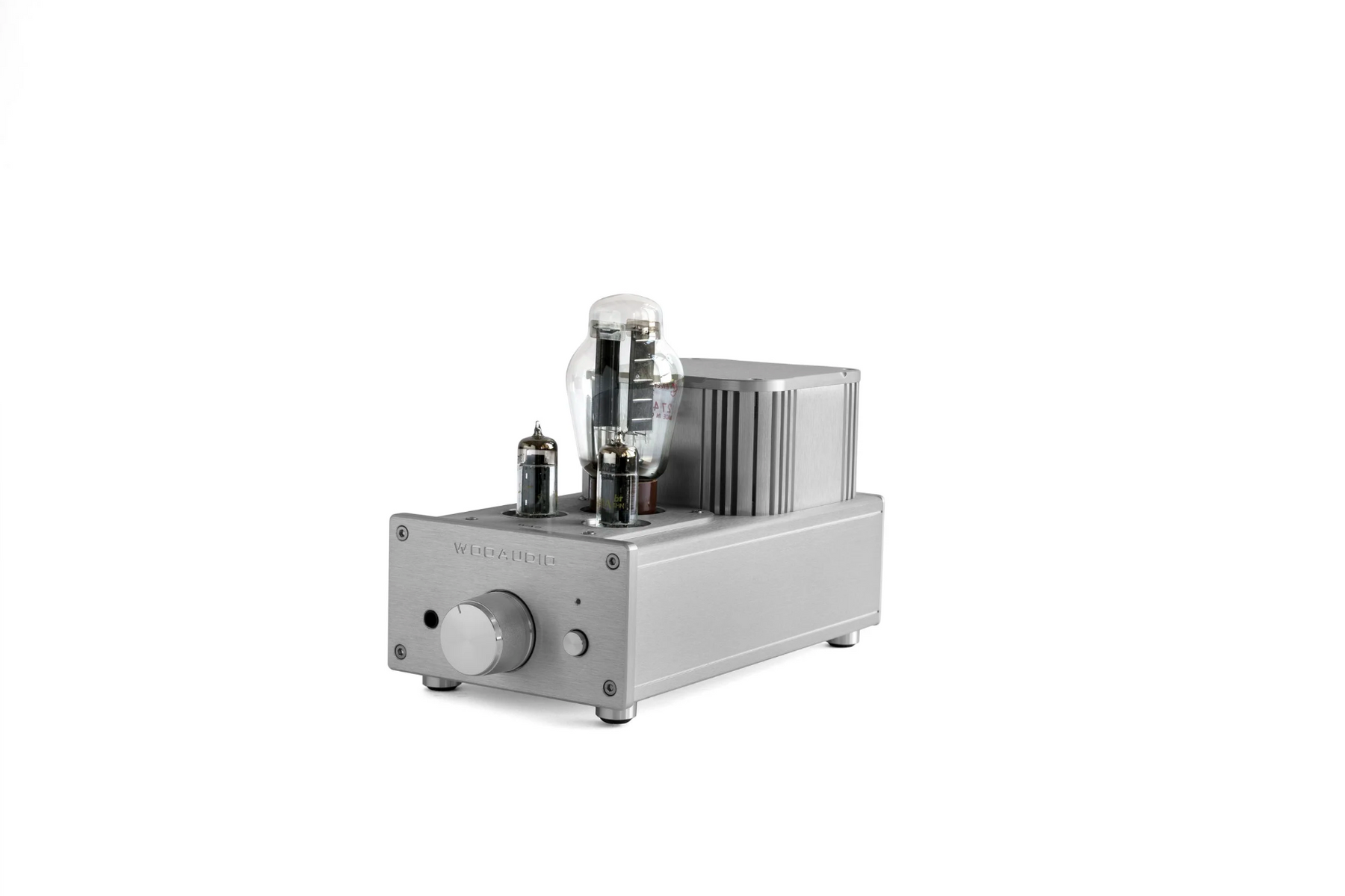

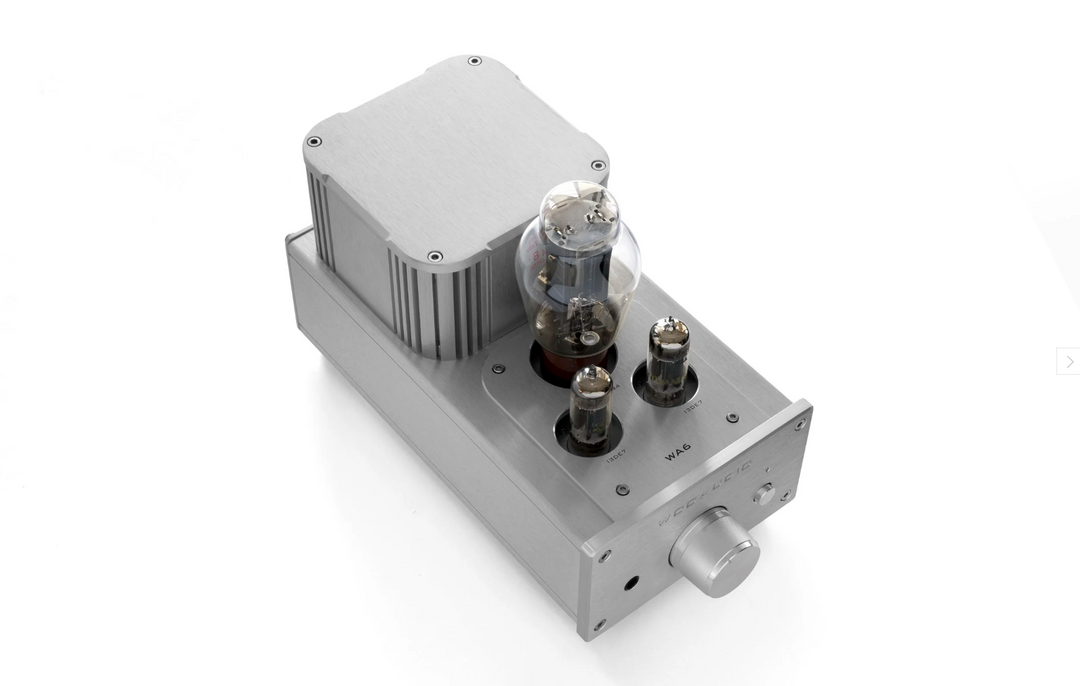

• Sasis aluminium anodized, tersedia dalam warna hitam atau perak

• Bias diri dengan tabung yang kompatibel [bagan]

• Global voltage (100v–220v) without converter

• Dimensions: 6"(H), 5½"(W), 13"(D), 13 lbs.

• Dirancang dan dirakit di New York, AS

• Garansi terbatas tiga tahun[pelajari lebih lanjut]

Di dalam kotak

• WA6 (2nd gen) headphone amplifier x 1

• 13DE7 vacuum tube x 2

• Tabung penyearah 5U4G (5U3C) x 1

• Panduan memulai dengan cepat

• UPGRADE [learn more]: Woo Audio PHANTOM DAC cable [1m or 2m length] x 1

*Kabel daya AC dan kabel audio tidak disertakan
