Deskripsi

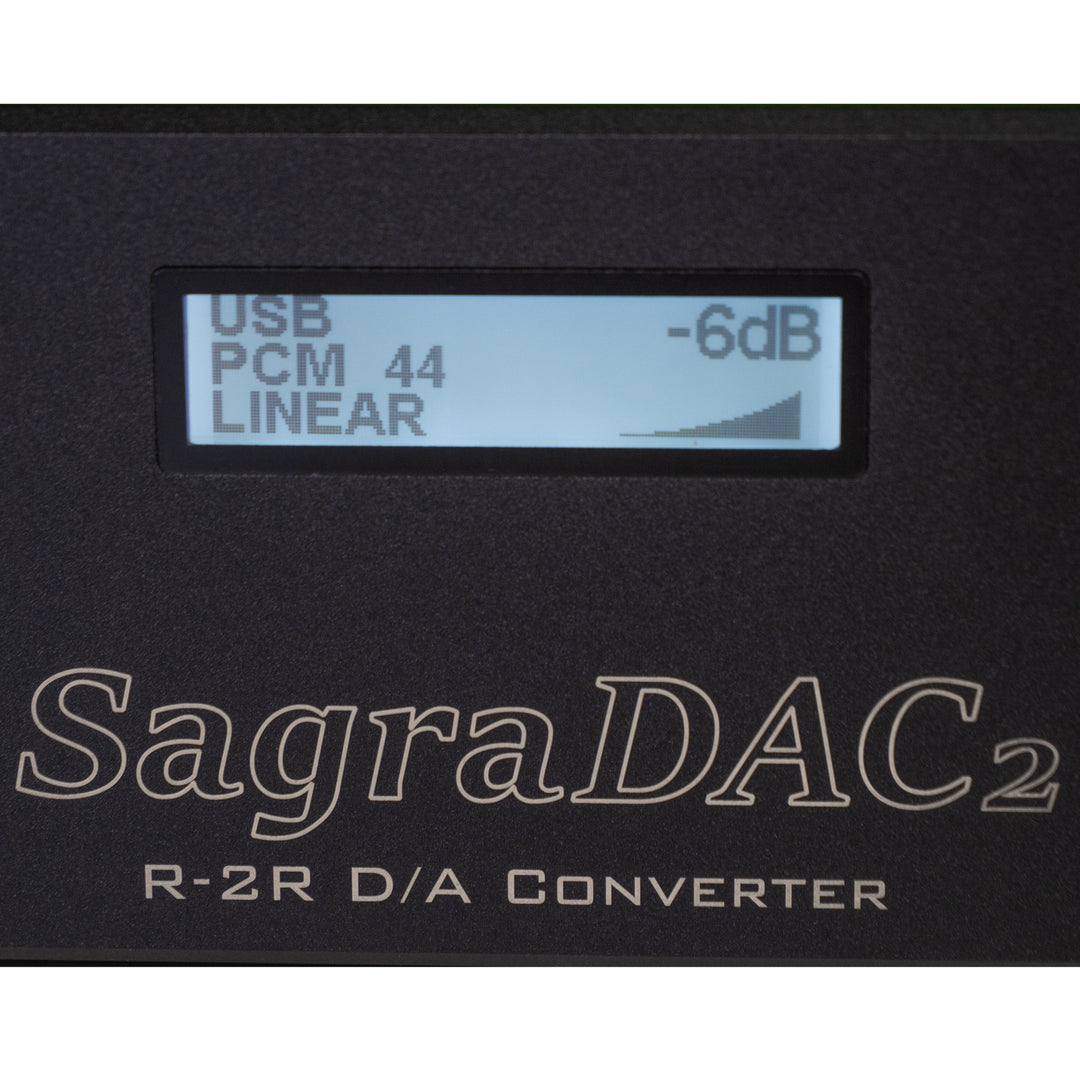

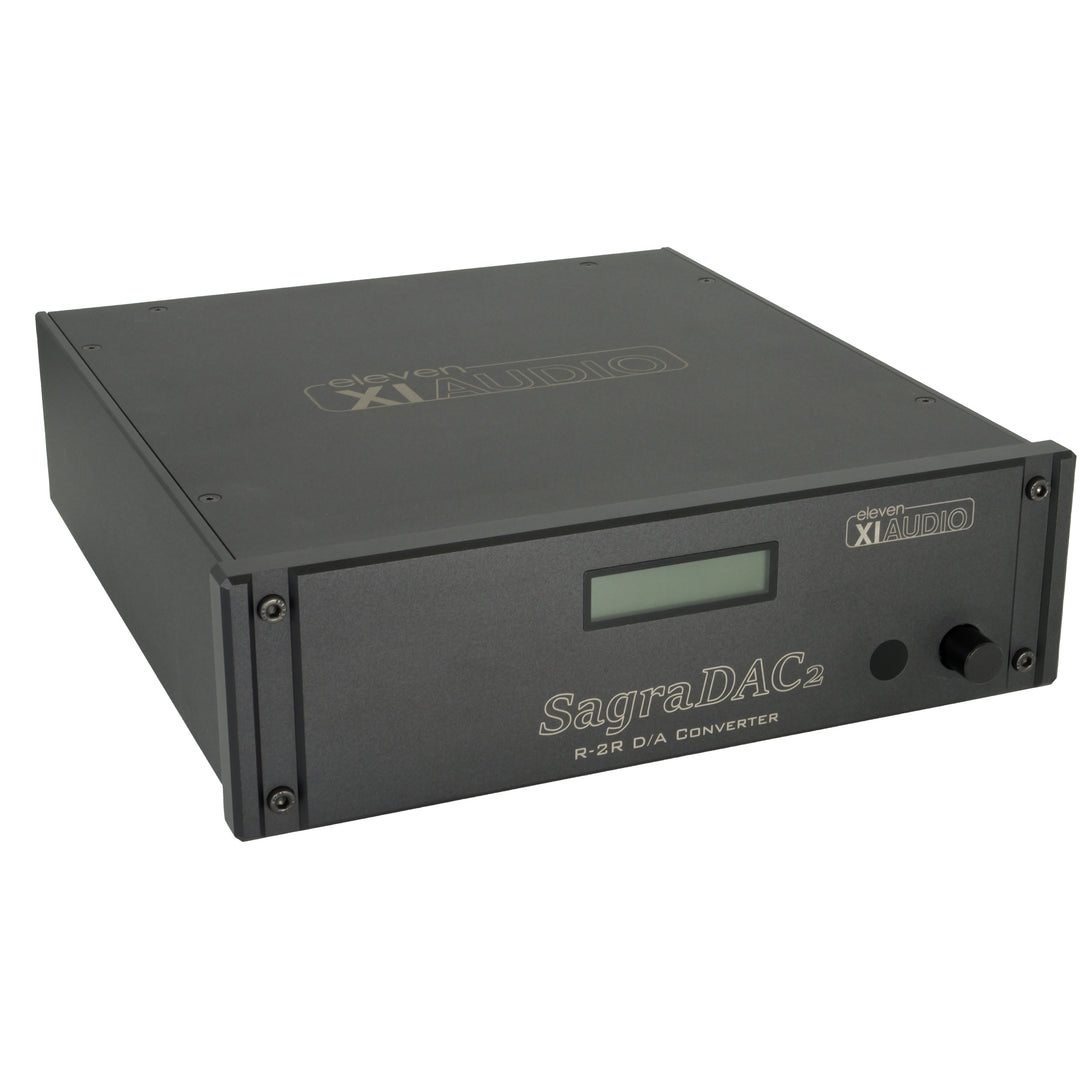

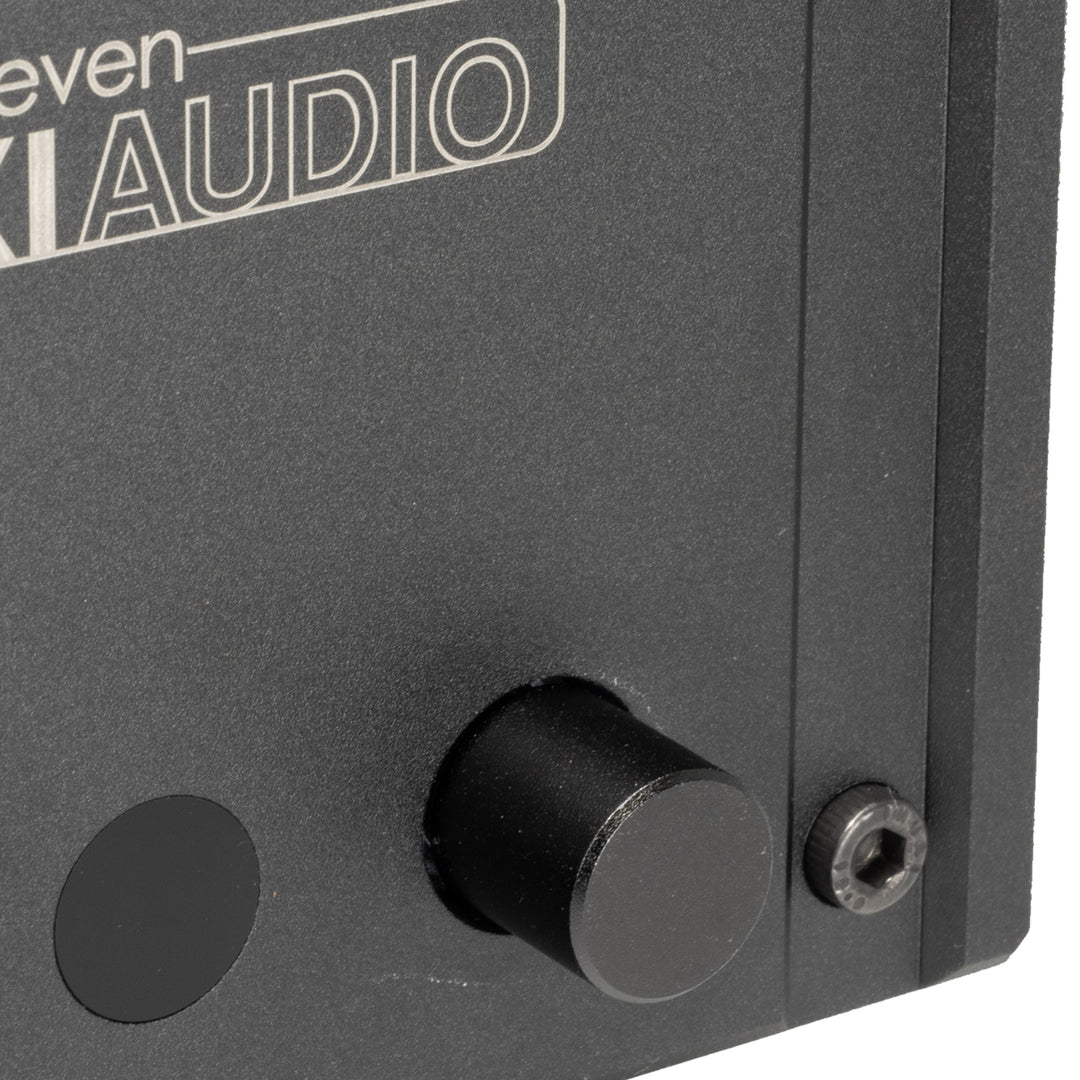

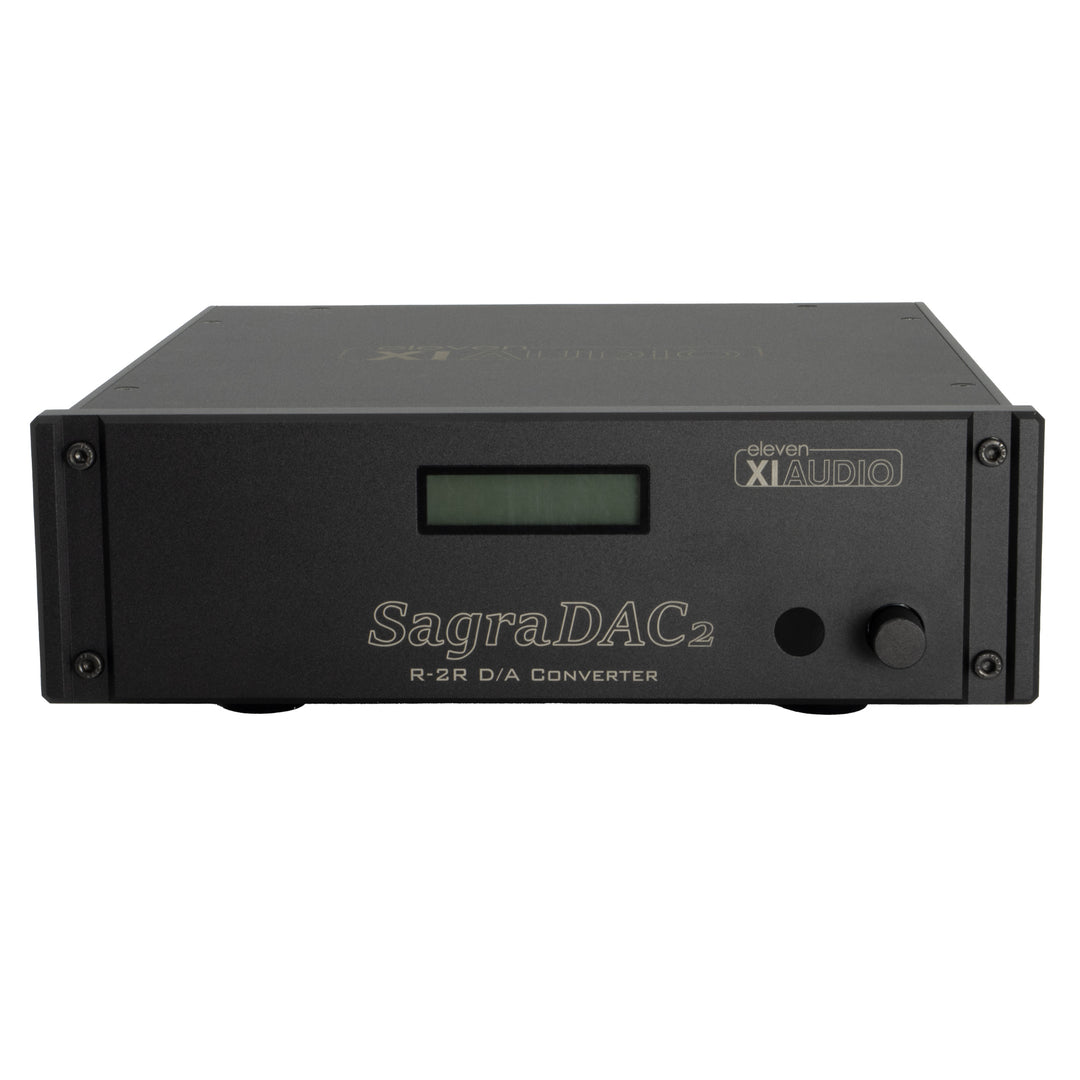

The new ELEVEN AUDIO Sagra DAC 2 is a premium D/A converter, featuring a 27-bit R2R digital to analog converter, multiple digital inputs covering all formats, balanced and RCA analog outputs, 4 filter modes, and a front panel volume control with remote control. It can be used as sole digital source preamp to drive a dedicated amplifier, or added within a multi piece stereo system as an excellent digital source.

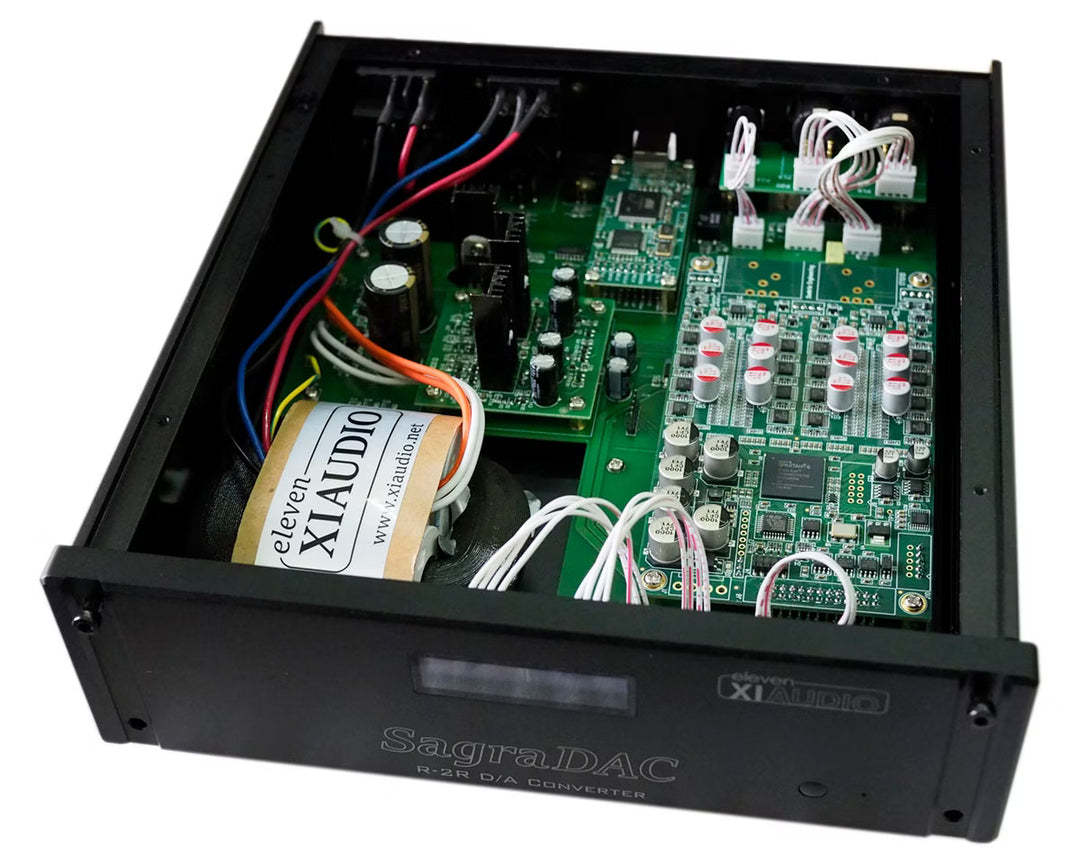

Fully regulated power supplies and Class A ultra-low-noise analog circuitry provide pristine sound through single-ended RCA and balanced XLR outputs, transforming digital recordings into vibrant analog music.
The Sagra DAC 2 supports sampling rates up to DSD256 and PCM 384KHz/24 bit, delivering a dynamic range far beyond what most systems can reproduce. The sound is remarkably clear, detailed, and smooth. No sibilance, vocals come alive, piano and horn exhibit authentic tonal and harmonic structure. Excellent bass extension and depth go way beyond other comparable DAC's, an all around joy to listen to with any genre of music.
Sagra DAC 2 is an excellent upgrade to any stereo 2 channel or headphone system. If you've been thinking about improving your source and entire listening chain, the Sagra is an excellent choice.
Specifications
- Dynamic range: 130.5 dB
- THD@-1dB: 0.008%
- THD@-60dB 0.03%
- Clock jitter RMS: 0.8 pS typical
- Signal-to-noise ratio (0-20 kHz): 127 dB unweighted
- Delay latency from digital input to analog output: 1 mS
- RCA output (analog single-ended output): 1.4 VRMS
- Balanced output (analog single-ended output): 4.0 VRMS

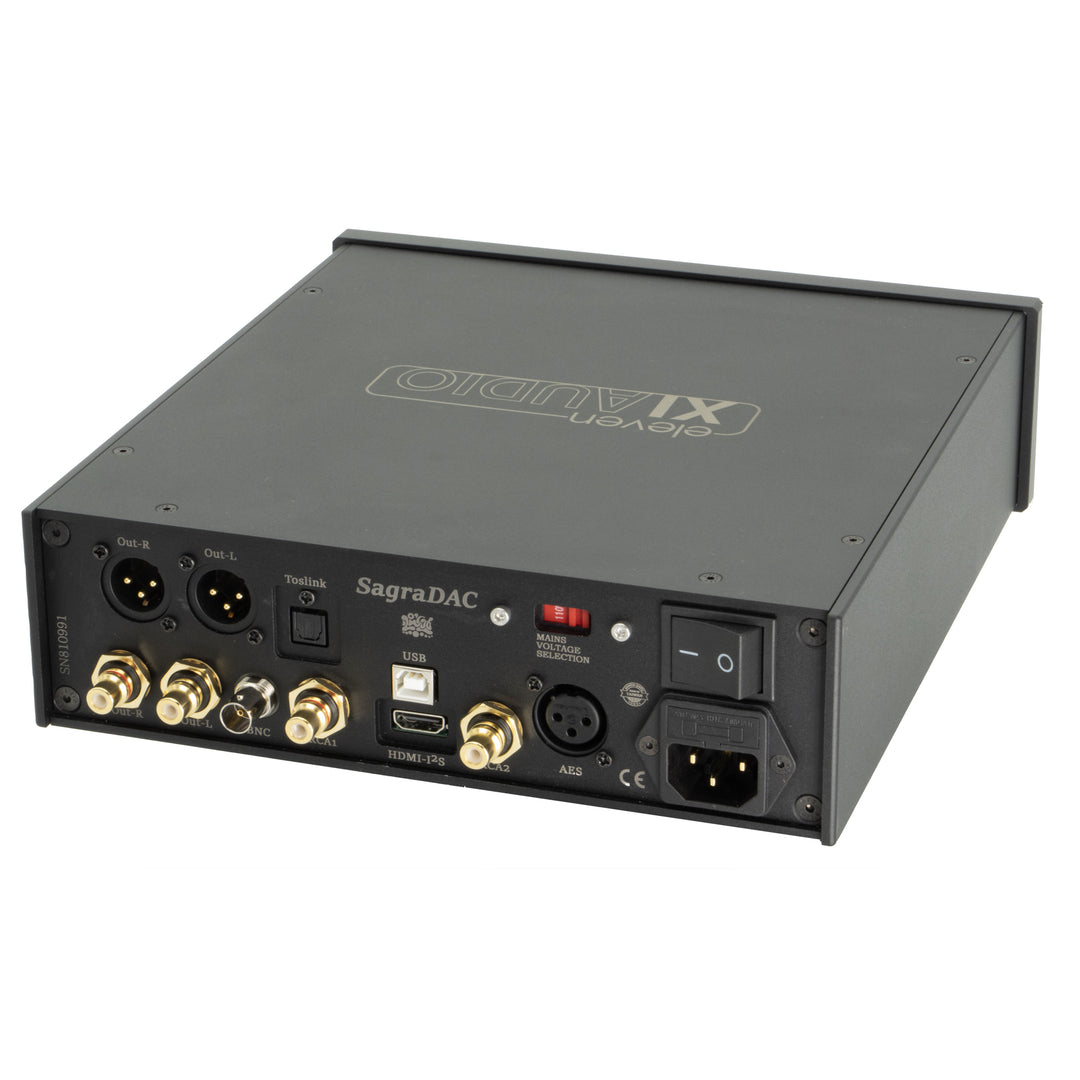

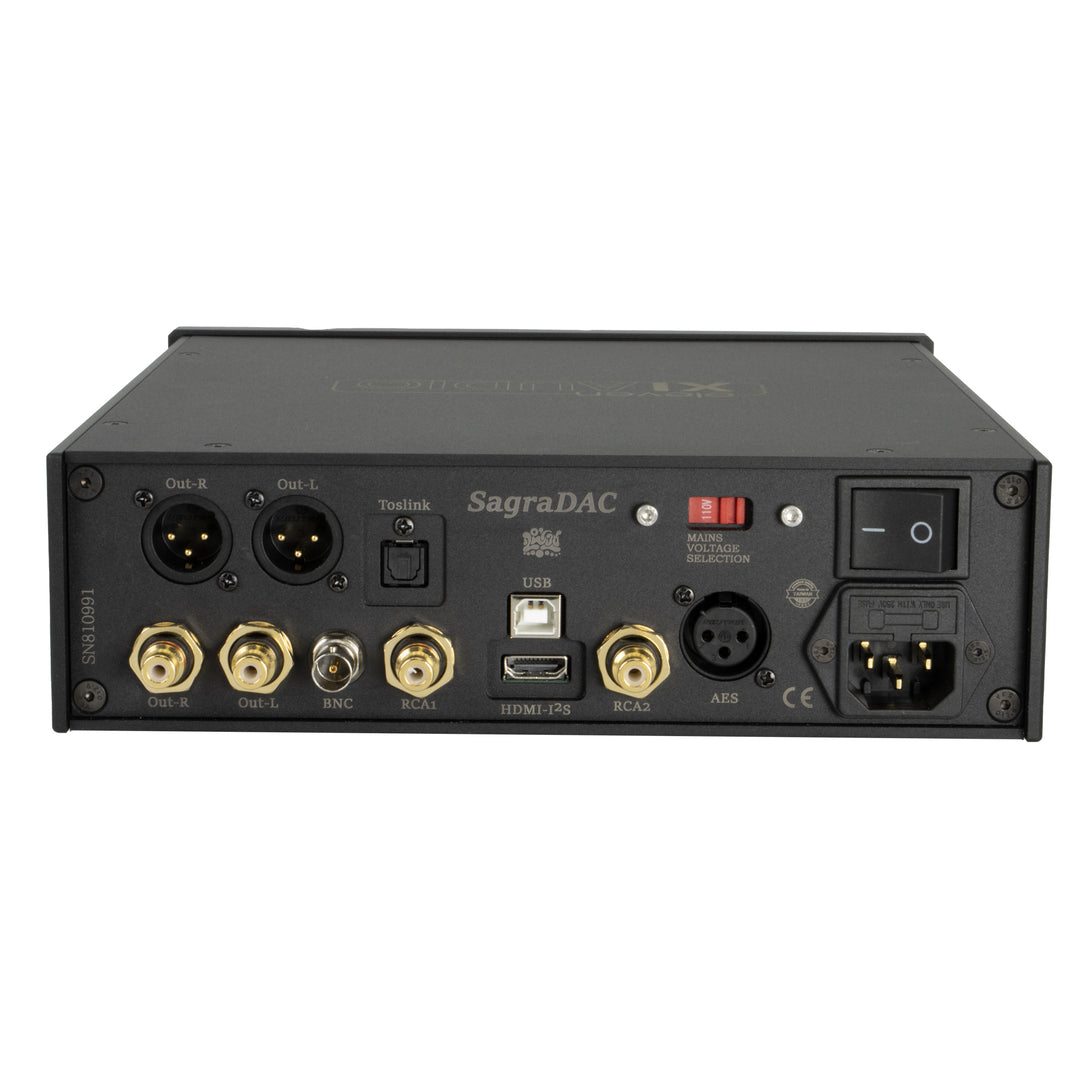

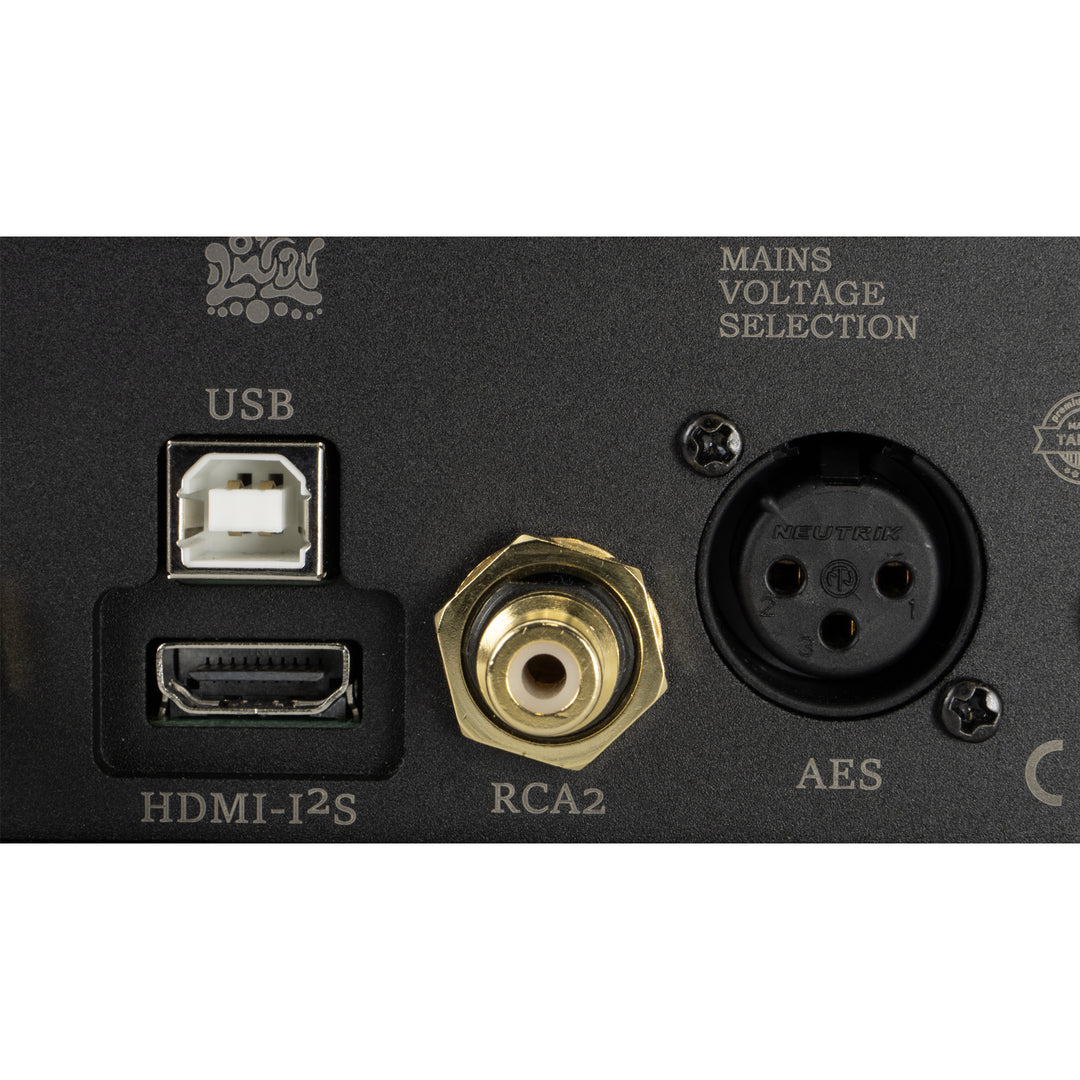

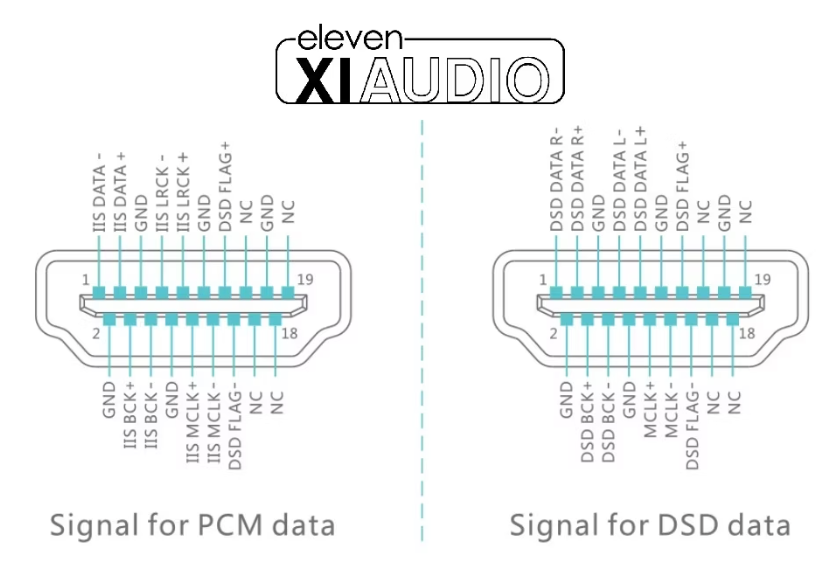

- Input: USB, HDMI I2S (SAW standard), SPD-IF (including RCA*2 75Ω and BNC 75Ω connectors), AES 110Ω/EBU, Toslink

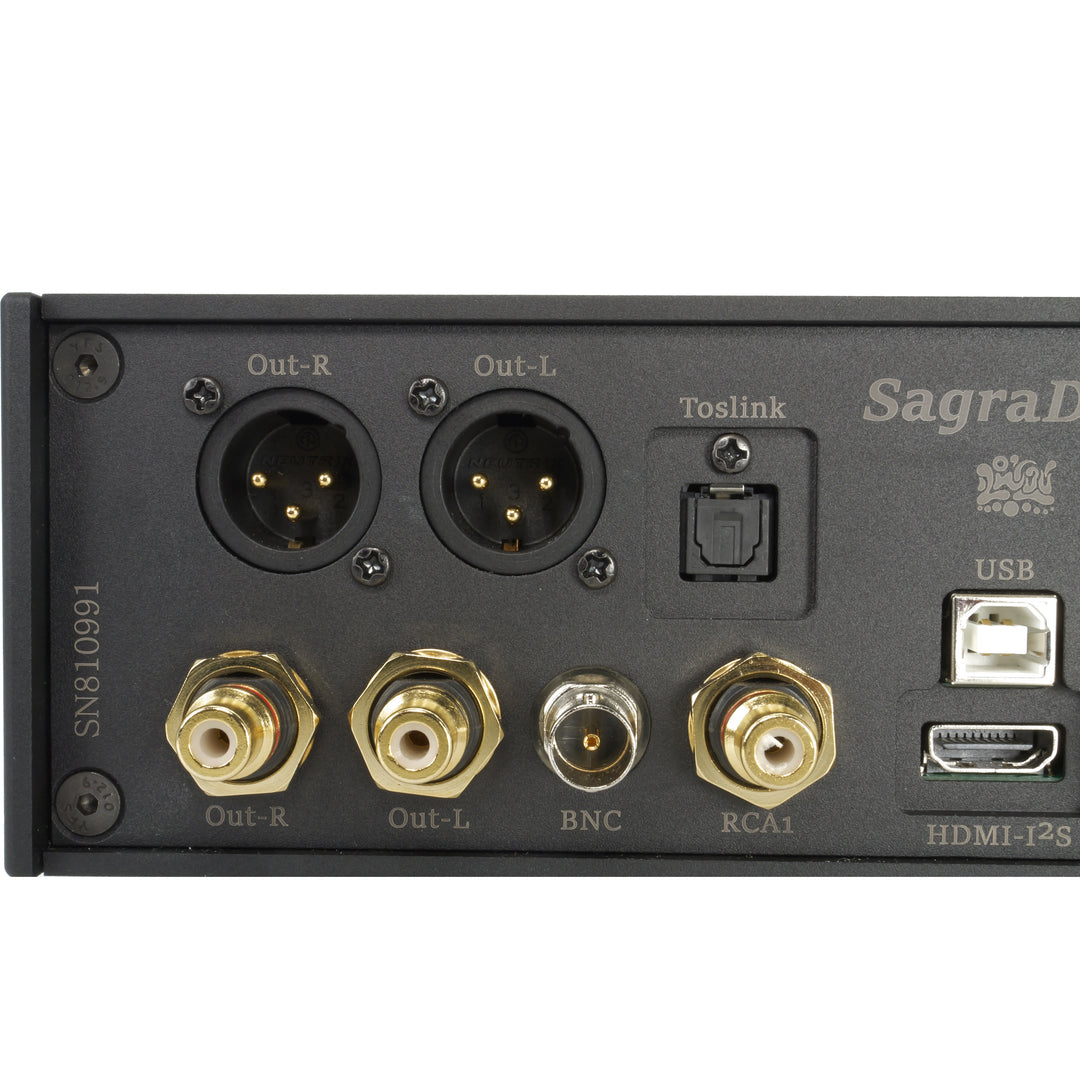

- Output: RCA * 2, XLR * 2
- Compatible with up to PCM 24-bit/384 kHz sampling rates, as well as DSD64, DSD128, and DSD256
- MAINS INPUT VOLTAGE: 100 – 110 VAC / 220 – 230 VAC, 50 – 60 Hz
- Size: 24 * 26 * 8.5 cm (W/D/H)
- Weight: 4.3 KG
- The Sagra is plug-and-play compatible with Macs. For Windows 10 PC users, please download the Windows 10 USB driver here. Windows 11 is plug-and-play compatible, no driver required.

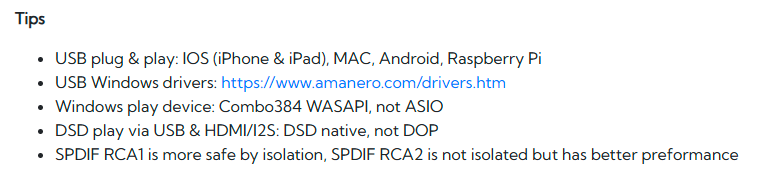

Tips
- USB plug & play: IOS (iPhone & iPad), MAC, Android, Raspberry Pi
- USB Windows drivers: https://www.amanero.com/drivers.htm
- Windows play device: Combo384 WASAPI, not ASIO
- DSD play via USB & HDMI/I2S: DSD native, not DOP

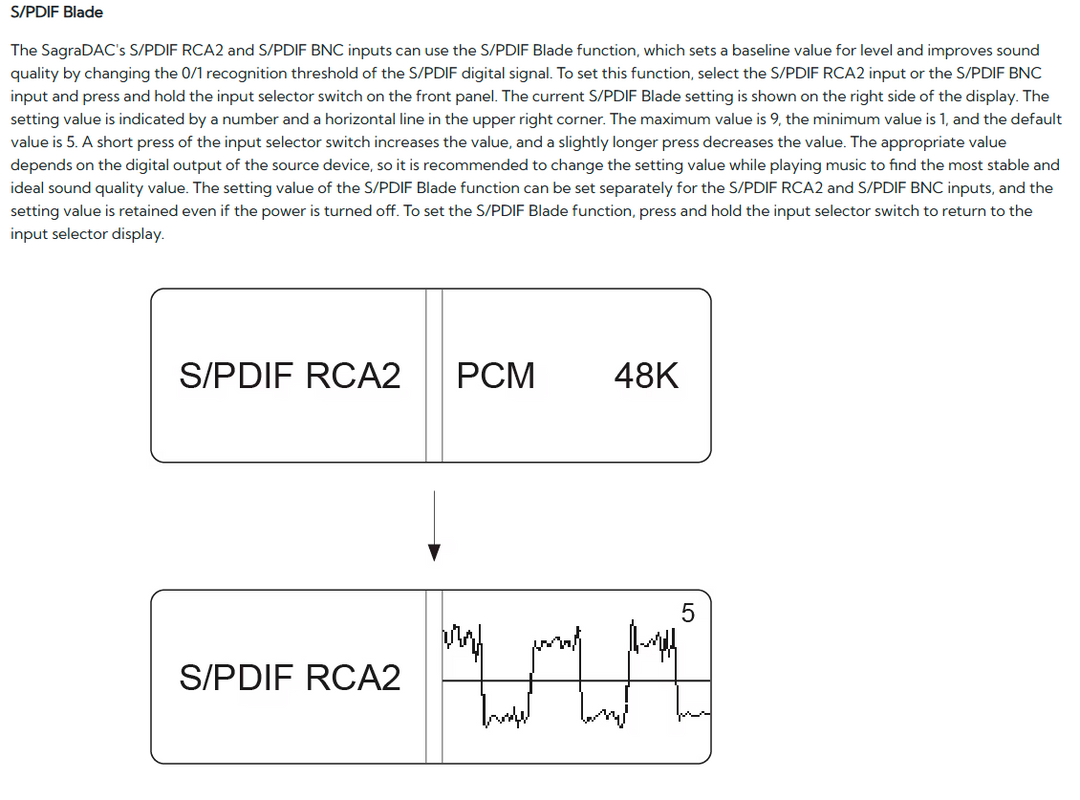

- SPDIF RCA1 is more safe by isolation, SPDIF RCA2 is not isolated but has better performance
Sumber yang sangat baik untuk headphone ABYSS dan/atau sistem stereo 2 saluran. Memiliki output RCA dan XLR memungkinkan untuk terhubung ke 2 sistem terpisah secara bersamaan.
Kabel yang direkomendasikan JPS Labs Superconductor V atau interkoneksi Superconductor 4 terbaik, dan JPS Labs Digital AC atau kabel daya Kaptovator Lite terbaik.
Sagra adalah plug and play dengan Mac. Untuk pemilik PC Windows 10, unduh driver USB Windows 10 di sini. Windows 11 adalah plug and play, tidak memerlukan driver.
